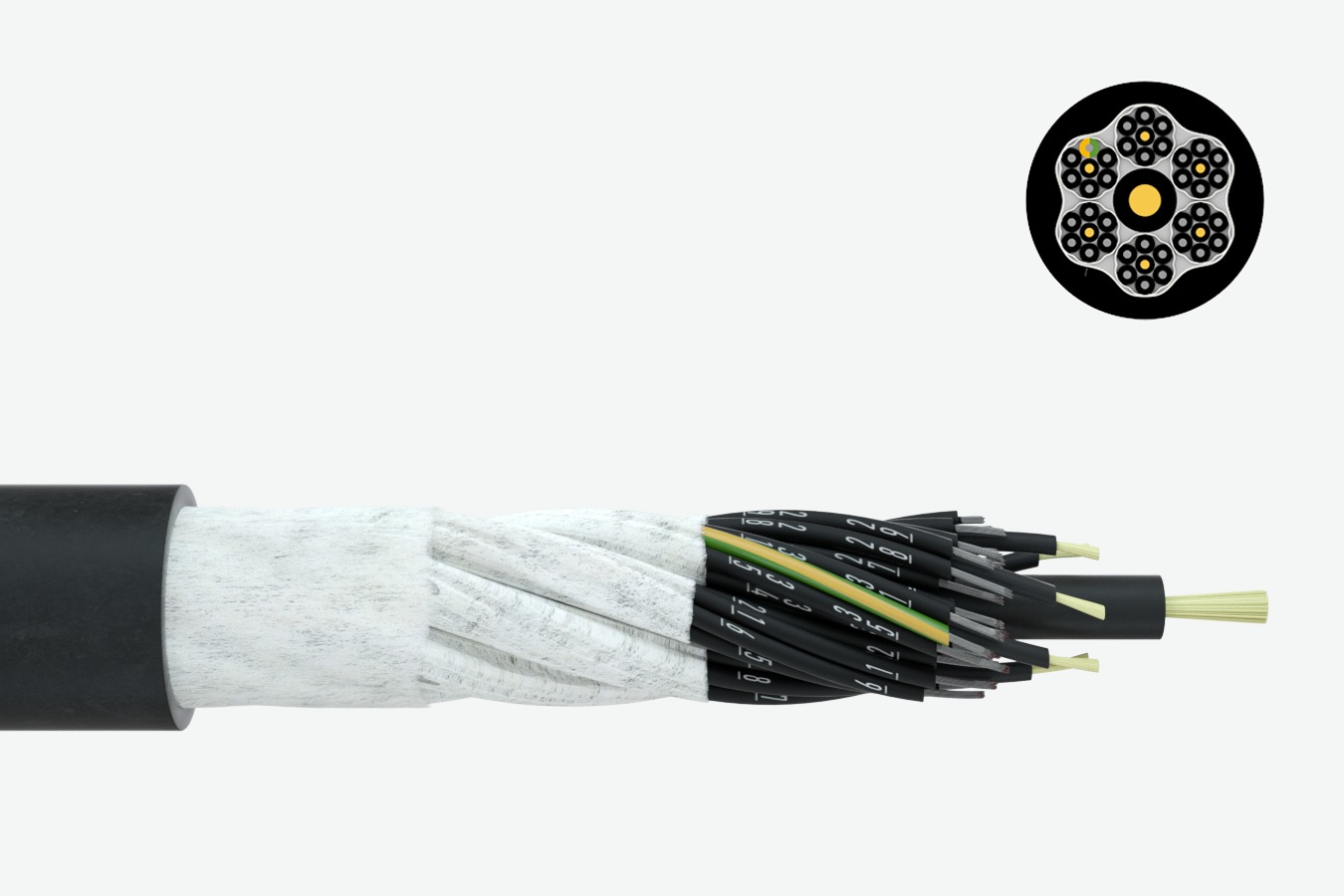

Spreader basket cable TRATOSCOILFLEX®
Spreader basket cable TRATOSCOILFLEX®
Использование
As supplay cable for heavy mechanical load in vertically basket operation, indoors and outdoors. The cable is resistant to ozone, UV-rays and dampness.
Конструкция
| Customs Tariff Number (code number) |
85444995900000000
|
| Conductor material |
tinned copper
|
| Conductor construction |
Class 5 = flexible
|
| Insulation |
basic EPR
|
| Self-supporting element |
Kevlar®
|
| Sheathing material |
rubber (CR) 5GM3
|
| Flame-retardant |
VDE 0482-332-1-2/IEC 60332-1-2
|
| Max. temperature at conductor, °C |
90 °C
|
| Permitted outer cable temperature, fixed, °C |
-40 - +80 °C
|
| Permitted outer cable temperature, moved, °C |
-30 - +80 °C
|
| Bending radius, moving application |
15 x Ø
|
| Operating speed |
160 m/min.
|
| Nominal voltage Uo |
300 V
|
| Nominal voltage U |
500 V
|
| Tensile strength (permanent) |
4000 N
|
| metal base Cu |
150 EUR/100 kg
|
| Unit of measurement |
metre
|
| crane cables / hoist cables |
yes
|
Стандарты
As supplay cable for heavy mechanical load in vertically basket operation, indoors and outdoors. The cable is resistant to ozone, UV-rays and dampness.
| Артикул |
Типоразмер кабеля |
| 051875 |
TRATOSCOILFLEX 36X2.5/14 AWG BK |
| 051876 |
TRATOSCOILFLEX 48X2.5/14 AWG BK |
| 051877 |
TRATOSCOILFLEX 54X2.5/14 AWG BK |
| 053596 |
TRATOSCOILFLEX 36X3.3/12 AWG BK |
