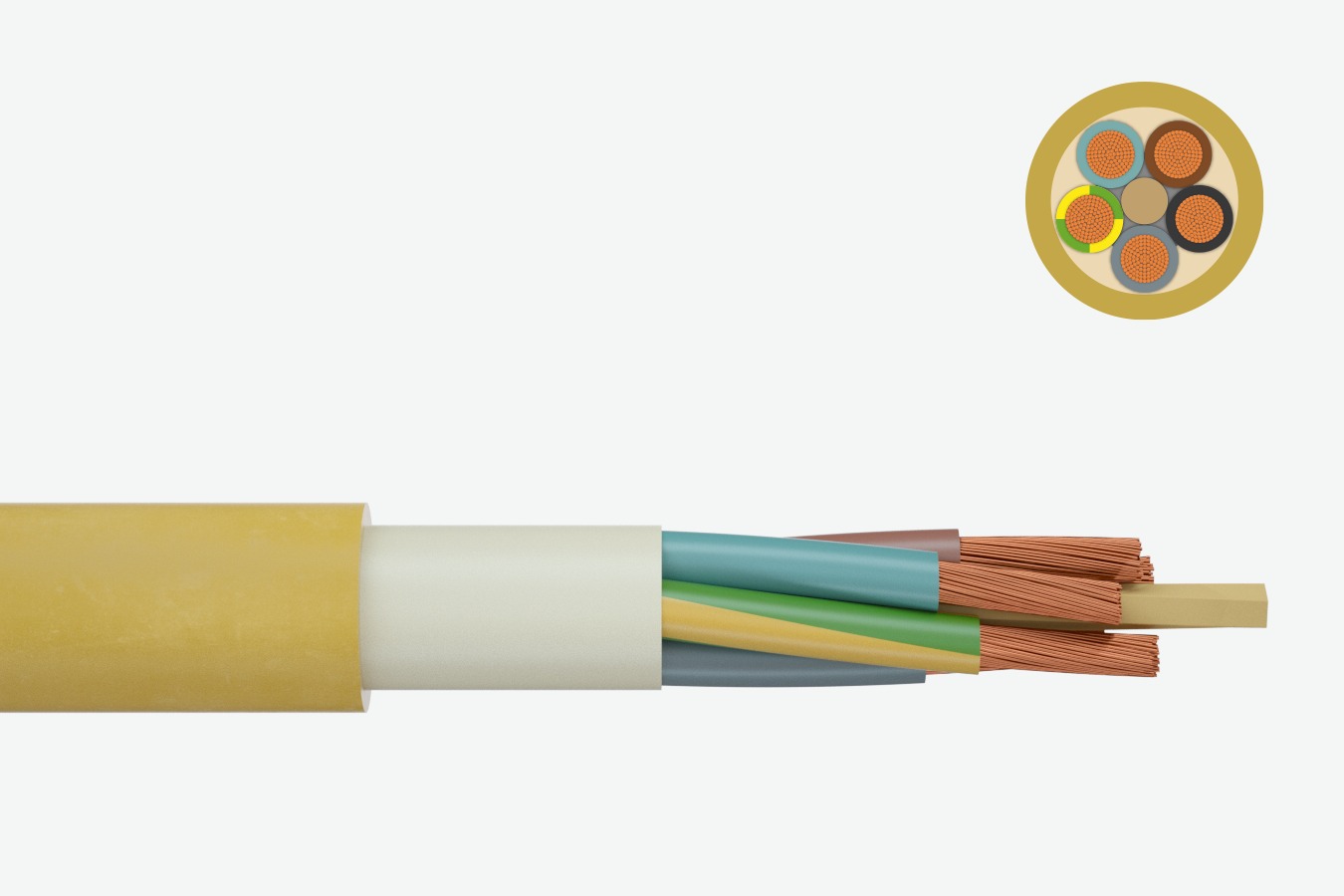

Rubber cable (N)SSHOEU
Rubber cable (N)SSHOEU
Использование
Rubber-sheated flexible cables for mining and tunneling application, under heavy mechanical stress. Suitable for laying alongside conveyor belts and tunnel walls, on material handling equipment, e.g. as connection bet ween upper and lower cars, and on movable equip-ment. The cables can be used indoor as well as outdoor, in explosion-hazard areas, in industr y and in agriculture. The cables are water resistant up to 10 m water depth. However, the water temperature must not rise above 40 °C.
Конструкция
| Customs Tariff Number (code number) |
85444995900000000
|
| Standard |
VDE 0250-812 (with ref. to)
|
| Conductor material |
copper, bare
|
| Conductor construction |
Class 5 = flexible
|
| Insulation |
basic EPR
|
| Material inner sheath |
EPR
|
| Torsion |
+/- 100 °/m
|
| Sheathing material |
rubber (CPE)
|
| Colour of outer sheath |
yellow
|
| Flame-retardant |
VDE 0482-332-1-2/IEC 60332-1-2
|
| UV-resistant |
yes
|
| Oil-resistant |
yes
|
| Ozone-resistant |
yes
|
| Max. temperature at conductor, °C |
90 °C
|
| Permitted outer cable temperature, fixed, °C |
-40 - +80 °C
|
| Permitted outer cable temperature, moved, °C |
-25 - +60 °C
|
| Bending radius, fixed installation |
4 x Ø
|
| Bending radius, moving application |
5 x Ø
|
| Maximum tensile strength at the conductor |
15 N/mm²
|
| metal base Cu |
150 EUR/100 kg
|
| Unit of measurement |
metre
|
Стандарты
Rubber-sheated flexible cables for mining and tunneling application, under heavy mechanical stress. Suitable for laying alongside conveyor belts and tunnel walls, on material handling equipment, e.g. as connection bet ween upper and lower cars, and on movable equip-ment. The cables can be used indoor as well as outdoor, in explosion-hazard areas, in industr y and in agriculture. The cables are water resistant up to 10 m water depth. However, the water temperature must not rise above 40 °C.
| Артикул |
Типоразмер кабеля |
| 052910 |
(N)SSHOEU-J 5X10 YE |
| 052911 |
(N)SSHOEU-J 5X16 YE |
| 052912 |
(N)SSHOEU-J 5X25 YE |
| 053259 |
(N)SSHOEU-J 4X1.5 YE |
| 053260 |
(N)SSHOEU-J 4X4 YE |
