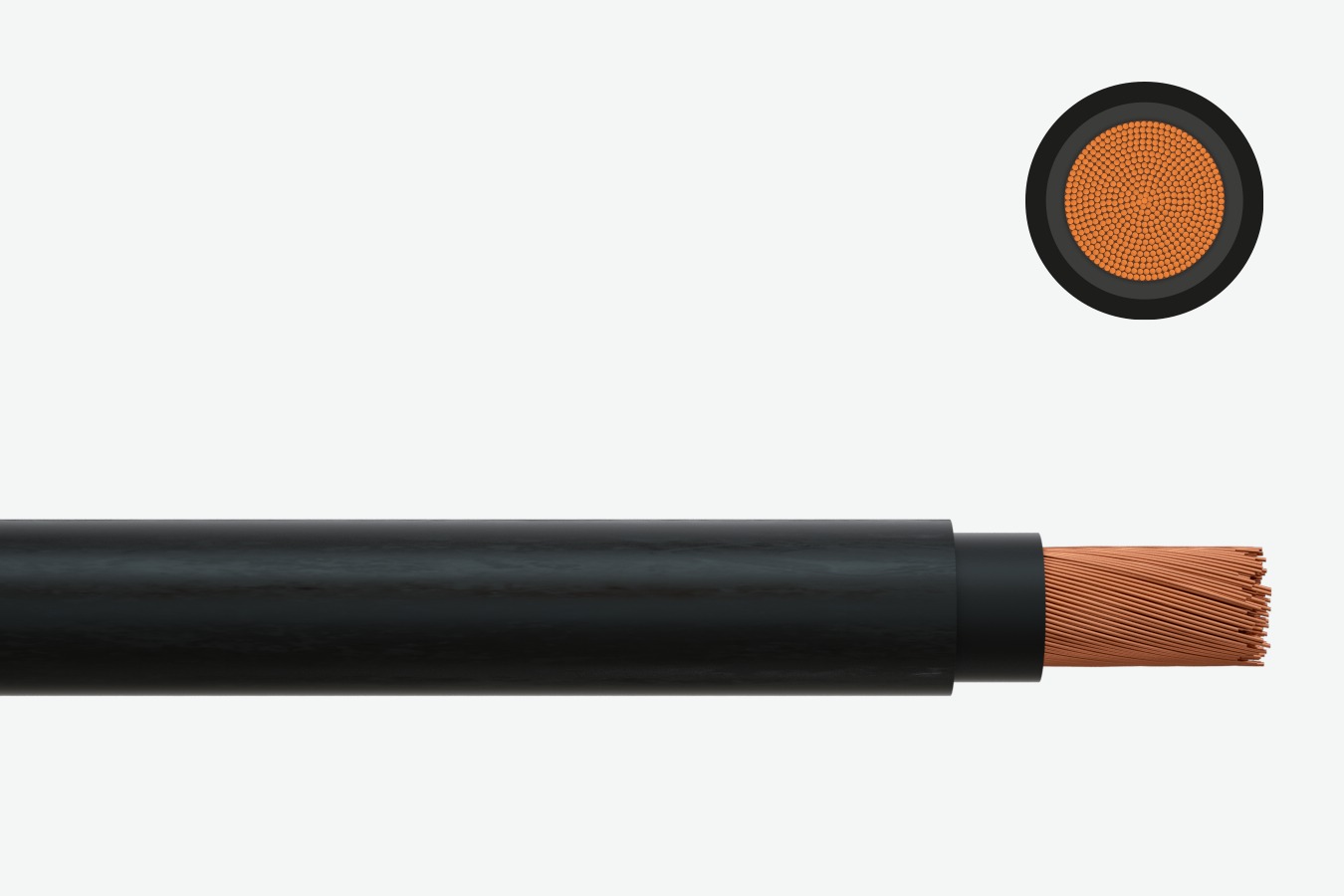

Power cable (N)YY RF
Power cable (N)YY RF
Использование
Flexible cable for installation indoors, outdoors, in the ground, in water and in conrete.
Конструкция
| Customs Tariff Number (code number) |
85444995900000000
|
| Standard |
VDE 0276-603, IEC 60502-1 with reference to
|
| Conductor material |
copper, bare
|
| Conductor construction |
Class 5 = flexible
|
| Insulation |
PVC
|
| Sheathing material |
PVC
|
| Colour of outer sheath |
black
|
| Flame-retardant |
yes
|
| Max. temperature at conductor, °C |
70 °C
|
| Permitted outer cable temperature, fixed, °C |
-5 - +70 °C
|
| Permitted outer cable temperature, moved, °C |
-5 - +70 °C
|
| Bending radius, fixed installation, multicore |
12 x Ø
|
| Conductor shape |
round
|
| Conductor shape (Faber) |
RF
|
| Number of cores |
1
|
| Colour of outer sheath |
black
|
| metal base Cu |
0 EUR/100 kg
|
| Unit of measurement |
metre
|
Стандарты
Flexible cable for installation indoors, outdoors, in the ground, in water and in conrete.
| Артикул |
Типоразмер кабеля |
| 011781 |
(N)YY-O 1X240 RF BK |
| 011853 |
(N)YY-O 1X300 RF BK |
| 014766 |
(N)YY-O 1X185 RF BK |
| 015085 |
(N)YY-O 1X150 RF BK |
| 015150 |
(N)YY-O 1X120 RF BK |
| 015250 |
(N)YY-O 1X35 RF BK |
| 015251 |
(N)YY-O 1X50 RF BK |
| 015252 |
(N)YY-O 1X70 RF BK |
| 015253 |
(N)YY-O 1X95 RF BK |
| 015656 |
(N)YY-O 1X400 RF BK |
| 015851 |
(N)YY-O 1X500RF BK |
