H05BQ-F

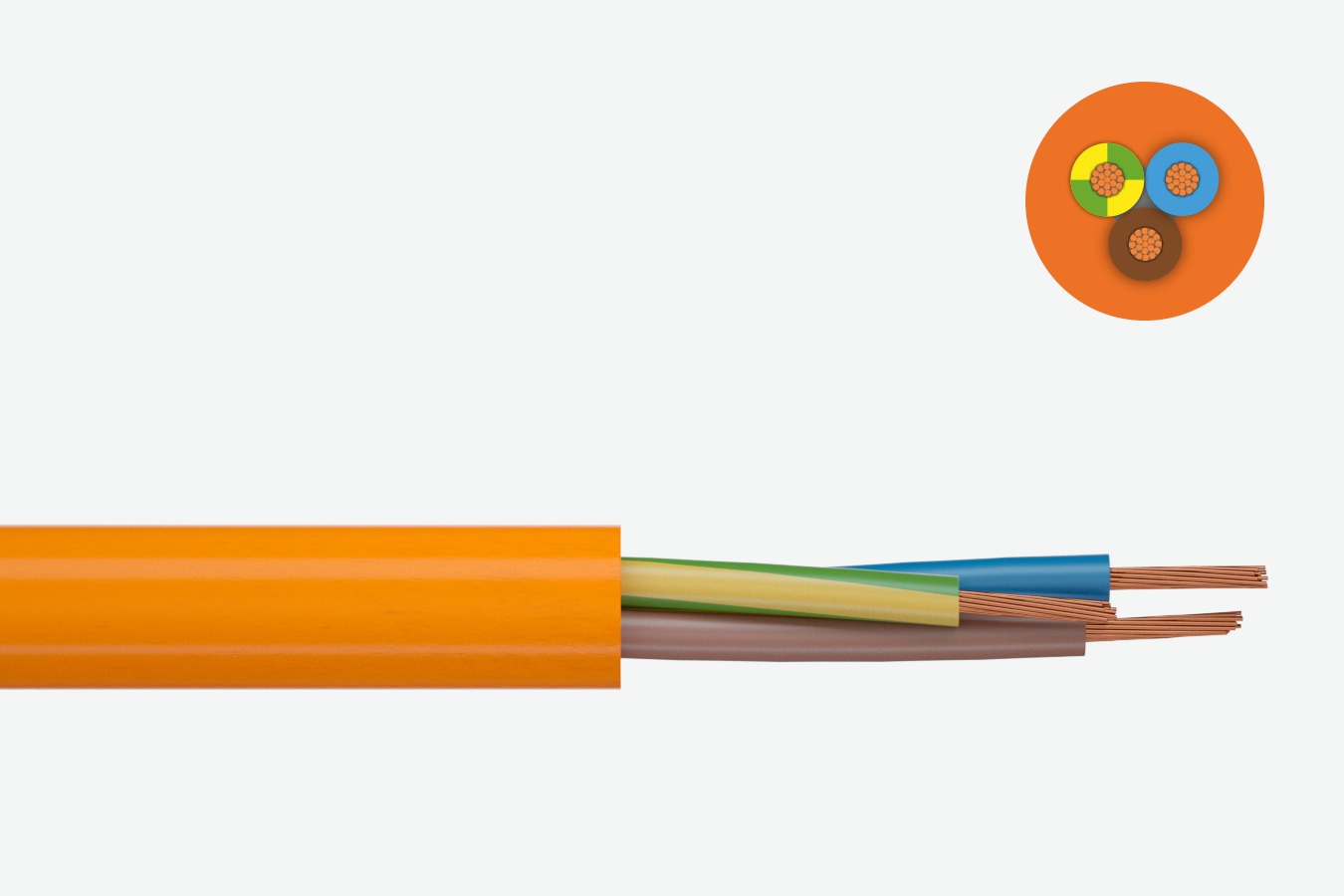

PUR insulated cable H05BQ-F
Использование
In dry and wet environments as well as outdoors under medium mechanical stress. For connection of electrical tools on building sites or in cold environments. The cable is highly oil-, abrasion- and impact resistant.
Конструкция
| Customs Tariff Number (code number) |
85444995900000000
|
| Standard |
DIN EN 50525-2-21 (VDE 0285-525-2-21)
|
| Conductor material |
copper, bare
|
| Conductor construction |
Class 5 = flexible
|
| Insulation |
rubber (EPR) EI6
|
| Sheathing material |
polyurethan
|
| Flame-retardant |
none
|
| Max. temperature at conductor, °C |
90 °C
|
| Permitted outer cable temperature, fixed, °C |
-40 - +50 °C
|
| Nominal voltage Uo |
300 V
|
| Nominal voltage U |
500 V
|
| Core identification |
colours acc. to VDE 0293 (HD308)
|
| Colour of outer sheath |
orange
|
| metal base Cu |
150 EUR/100 kg
|
| Unit of measurement |
metre
|
Стандарты
In dry and wet environments as well as outdoors under medium mechanical stress. For connection of electrical tools on building sites or in cold environments. The cable is highly oil-, abrasion- and impact resistant.
| Артикул |
Типоразмер кабеля |
| 050320 |
H05BQ-F 2X0.75 OG |
| 050321 |
H05BQ-F 3G0.75 OG |
| 050322 |
H05BQ-F 4G0.75 OG |
| 050323 |
H05BQ-F 5G0.75 OG |
| 050324 |
H05BQ-F 2X1 OG |
| 050325 |
H05BQ-F 3G1 OG |
| 050326 |
H05BQ-F 4G1 OG |
| 050327 |
H05BQ-F 5G1 OG |
| 051270 |
H05BQ-F 3X0.75 OG |
